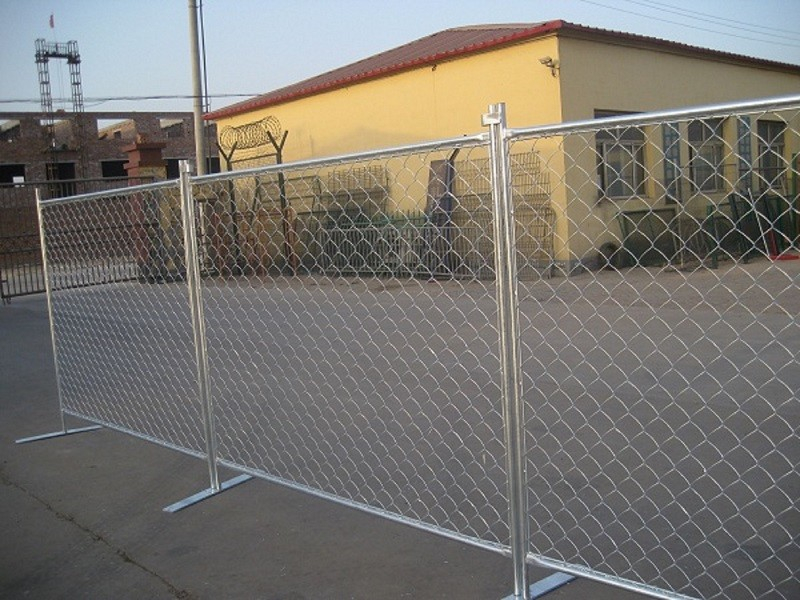

Chain Link Temporary fence panel is also known as American temporary fence, temporary chain link fence, portable fence, no dig fence,temp fencing and mobile fence.It is consist of chain link panel, round tube frame, steel feet, optional stays and clamps.This kind of fence has a superior structure, mobility and environmental suitability is very good.
Chain Link Temporary Fence Specification | |
Fence height | 4ft, 6ft, 8ft |
Fence width/length | 10ft, 12ft, 14ft, etc |
Wire diameter | 2.7mm, 2.5mm, 3mm |
Chain link mesh size | 57x57mm (2-1/4"), 50x50mm, 60x60mm, etc. |
Frame tube O.D | 33.4mm (1-3/8"), 32mm, or 42mm (1-5/8") with 0.065" wall thickness |
Vertical/cross brace tube O.D | 25mm or 32mm with 1.6mm (0.065") wall thickness |
Fence base/stand | 610x590mm, 762x460mm, etc |
Accessories | clamps, base feet, tension wire and tension bar (optional) |
Material | hot dipped galvanized tube and wire |
Surface treatment | All joints are welded and sprayed with a galvanized paint to cover any exposed metal |
1).It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.
2).Weather resistant and durable, and will last much longer; The temporary fences are light and easy to handle, while being strong and robust at the same time;
3).The feet are removable which makes transportation and storage much easier and more efficient
4).Easy to Erect - four metres a minute
Light and easy to handle
Create a gate at any point on the perimeter
Economical temp fence - can be used time after time
Delivered accompanied by fork lift for easy distribution
Constructed from heavy gauge galvanized tube and welded mesh infill
Pre hot dip galvanized wire drawing--- cut wire and pipes ---wire weave---cut the corners of the mesh---Pre hot dip galvanized pipes welded—polish the welds—paint anti-rust epoxy—spray sliver powder coat on each welds—stacking—packaging
Chain Link Temporary fence panel is also known as American temporary fence, temporary chain link fence, portable fence, no dig fence,temp fencing and mobile fence.It is consist of chain link panel, round tube frame, steel feet, optional stays and clamps.This kind of fence has a superior structure, mobility and environmental suitability is very good.
Chain Link Temporary Fence Specification | |
Fence height | 4ft, 6ft, 8ft |
Fence width/length | 10ft, 12ft, 14ft, etc |
Wire diameter | 2.7mm, 2.5mm, 3mm |
Chain link mesh size | 57x57mm (2-1/4"), 50x50mm, 60x60mm, etc. |
Frame tube O.D | 33.4mm (1-3/8"), 32mm, or 42mm (1-5/8") with 0.065" wall thickness |
Vertical/cross brace tube O.D | 25mm or 32mm with 1.6mm (0.065") wall thickness |
Fence base/stand | 610x590mm, 762x460mm, etc |
Accessories | clamps, base feet, tension wire and tension bar (optional) |
Material | hot dipped galvanized tube and wire |
Surface treatment | All joints are welded and sprayed with a galvanized paint to cover any exposed metal |
1).It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.
2).Weather resistant and durable, and will last much longer; The temporary fences are light and easy to handle, while being strong and robust at the same time;
3).The feet are removable which makes transportation and storage much easier and more efficient
4).Easy to Erect - four metres a minute
Light and easy to handle
Create a gate at any point on the perimeter
Economical temp fence - can be used time after time
Delivered accompanied by fork lift for easy distribution
Constructed from heavy gauge galvanized tube and welded mesh infill
Pre hot dip galvanized wire drawing--- cut wire and pipes ---wire weave---cut the corners of the mesh---Pre hot dip galvanized pipes welded—polish the welds—paint anti-rust epoxy—spray sliver powder coat on each welds—stacking—packaging
